Roller mill for phosphate for animal feed in uganda
Facing the Phosphate Grinding Challenge in Uganda’s Animal Feed Sector
Uganda’s livestock and poultry industries are expanding rapidly, driving a surge in demand for high-quality animal feed. Phosphate rock, a key mineral source of phosphorus, is essential for bone development and metabolic functions in animals. However, turning raw phosphate rock into a fine, uniform powder suitable for feed premixes is no easy task. Traditional grinding methods often fall short—either consuming too much energy, producing inconsistent particle sizes, or generating excessive dust that harms both workers and the environment.
After spending time with feed millers in Kampala, Jinja, and Mbale, I’ve seen the frustration firsthand. Many small-to-medium operations rely on outdated hammer mills or ball mills that struggle to achieve the fineness required for optimal feed digestibility. The result? Higher operational costs, frequent maintenance shutdowns, and variable product quality that affects animal growth rates. This is where modern roller mill technology steps in—not as a luxury, but as a practical solution for Uganda’s growing feed industry.
Why Choose a Roller Mill for Phosphate Processing?
Roller mills, especially those designed for ultra-fine grinding, offer distinct advantages over conventional equipment. The key lies in their grinding principle: material is crushed between rotating rollers and a stationary ring or table, rather than being impacted by hammers or tumbling balls. This produces a more uniform particle shape and size distribution—critical for feed applications where every gram of phosphorus must be bioavailable.

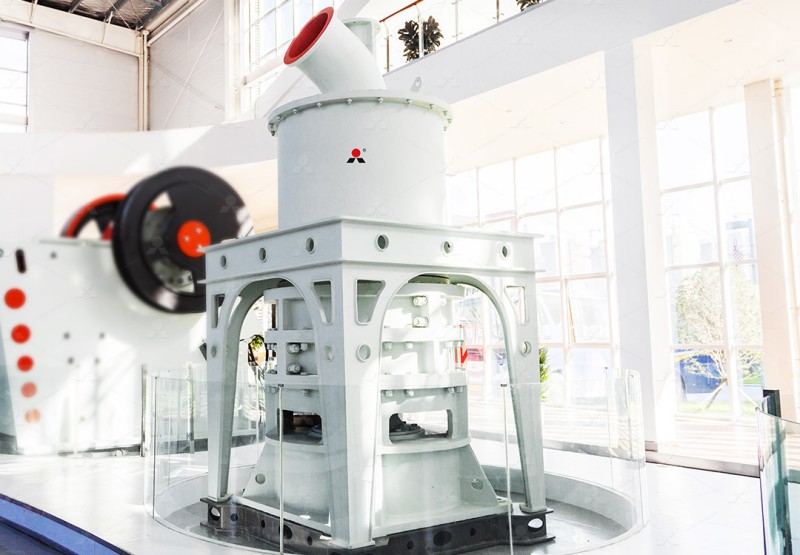

The MW Ultrafine Grinding Mill from Liming Heavy Industry is a perfect example. It accepts feed sizes up to 20 mm and delivers capacities between 0.5 and 25 tph, making it suitable for both pilot-scale trials and full production lines. The mill’s cage-type powder selector, based on German technology, allows precise adjustment of fineness from 325 to 2500 mesh (approximately 44 to 5 microns). For phosphate feed supplements, a typical target is around 100–200 mesh (149–74 microns), but the ability to go finer gives millers flexibility for specialized products.
One of the biggest headaches in Uganda’s humid climate is equipment corrosion and bearing failure. The MW mill addresses this head-on: there are no rolling bearings or screws inside the grinding chamber. Instead, the lubricating system is mounted externally on the main shaft, allowing continuous 24-hour operation without shutdown for greasing. This is a game-changer for feed mills that run round-the-clock to meet demand.

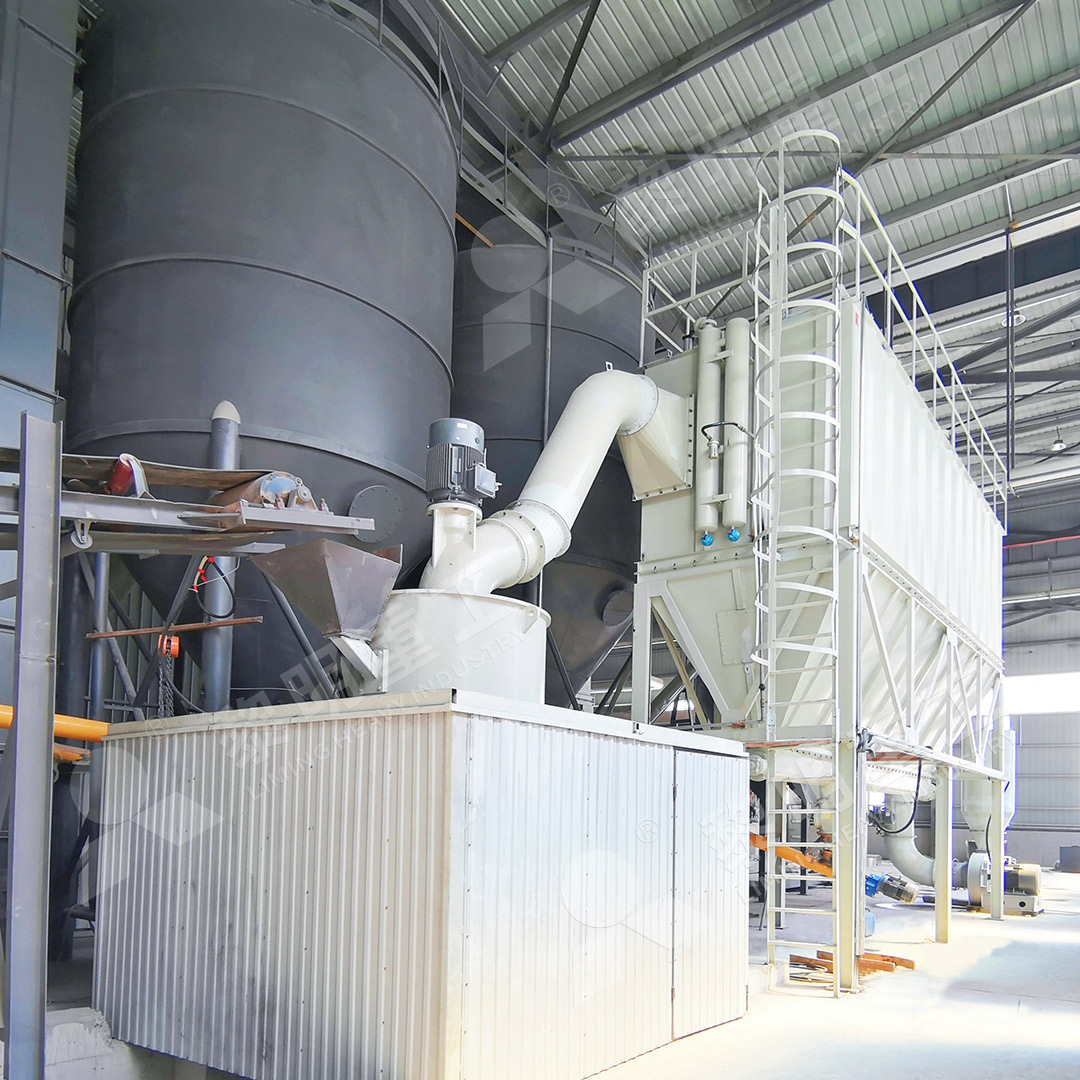

Another critical factor is dust control. Phosphate dust is not only a health hazard but also a fire and explosion risk. The MW series comes equipped with an efficient pulse dust collector and a muffler, ensuring that the entire milling system operates within national environmental standards. In Uganda, where regulations are tightening, investing in dust-free equipment is both a compliance and a safety measure.
Comparing Roller Mill Options for Ugandan Conditions
While the MW Ultrafine Grinding Mill is a strong contender, larger operations might benefit from the LUM Ultrafine Vertical Grinding Mill. With an input size of 0–10 mm and a capacity of 5–18 tph, the LUM mill integrates grinding, grading, and conveying into one unit. Its roller shell and lining plate curves are specially designed to create a stable material layer, which improves grinding efficiency and reduces iron contamination—important for maintaining the whiteness and purity of feed-grade phosphate.
The LUM mill also features double position-limiting technology, which prevents the grinding roller from directly smashing the millstone during sudden vibration, such as from a power surge or hard rock inclusion. In Uganda’s sometimes unstable power grid, this added protection translates to fewer breakdowns and lower maintenance costs. The reversible structure allows the operator to swing the grinding roller out of the body for inspection and roller shell replacement, minimizing downtime.
For operations that need even higher throughput, the LM Vertical Grinding Mill accepts feed sizes up to 70 mm and delivers capacities up to 340 tph. Its combined crushing, drying, grinding, and classifying functions make it a one-stop solution, but it’s more suited to large-scale mineral processors rather than typical Ugandan feed mills. That said, if your business plans to expand into phosphate mining or bulk fertilizer production, the LM series is worth a look.
When choosing between these models, consider not just the initial investment but also the total cost of ownership—energy consumption, spare parts availability, and ease of maintenance. The MW and LUM mills both offer digitalized manufacturing with numerically controlled machine tools, ensuring high precision on core parts. And Liming provides sufficient spare parts supply and technical services, so you won’t be left waiting for weeks when a component wears out.
Practical Tips for Setting Up a Phosphate Grinding Line
Based on conversations with engineers who have commissioned these mills in East Africa, here are a few practical recommendations. First, ensure your front-end crushing equipment is properly sized. The MW mill requires input below 20 mm, which means you’ll need a secondary crusher unless your phosphate rock is naturally fine. A simple jaw crusher and vibrating feeder setup usually does the job.
Second, pay attention to moisture content. Phosphate rock often arrives with some surface moisture. While the MW mill can handle materials with up to 10%% moisture, excessive dampness will clog the grinding chamber and reduce throughput. If your raw material is wet, consider adding a drying step or a pre-heating system. The LUM mill’s integrated design handles drying more effectively, but it’s still wise to keep moisture below 6%% for optimal performance.
Third, train your operators on the powder fineness adjustment mechanism. The ability to switch between, say, 100 mesh for poultry feed and 200 mesh for pig feed is a major advantage. The MW mill’s multi-head cage-type selector allows fast changes without stopping the machine. Document the settings for each product to maintain consistency.
Finally, plan for regular inspection of wear parts. The grinding rollers and rings in these mills are made from wear-resistant alloy, which lasts 1.7 to 2.5 times longer than traditional manganese steel. But they still need to be checked every 500–800 operating hours, depending on the abrasiveness of your phosphate. Keep a set of spare rollers on site to avoid prolonged downtime.
We Recommend for Your Phosphate Feed Application
For most Ugandan feed millers looking to upgrade or start a phosphate grinding operation, the MW Ultrafine Grinding Mill offers the best balance of capacity, fineness control, and dust management. It’s compact enough for medium-sized plants yet scalable for future growth. If your production target exceeds 15 tph or you need to process multiple minerals with frequent product changes, consider the LUM Ultrafine Vertical Grinding Mill—its integrated design and reversible maintenance features make it a long-term workhorse.
Final Thoughts
Uganda’s feed industry is on the rise, and the quality of mineral supplements will determine the competitiveness of its livestock products. Investing in the right roller mill technology is not just about grinding rocks—it’s about producing consistent, nutritious feed that helps farmers raise healthier animals. With durable construction, low energy consumption, and eco-friendly operation, Liming’s grinding mills are built to deliver that value. Talk to a local distributor, run some test batches with your phosphate, and see the difference a modern roller mill can make.
Frequently Asked Questions
- What is the typical fineness required for phosphate in animal feed?
Most feed premixes require phosphate ground to 100–200 mesh (149–74 microns). However, some specialized applications like mineral blocks may need finer powder down to 325 mesh. The MW Ultrafine Grinding Mill can adjust fineness between 325 and 2500 mesh, covering all feed scenarios. - Can the same mill be used for other minerals like limestone or gypsum?
Yes. Both the MW and LUM mills can process a variety of non-metallic minerals including limestone, calcite, dolomite, barite, and gypsum. You only need to adjust the fineness and feeding parameters. This versatility makes them cost-effective for multi-product feed mills. - How much dust does the MW mill generate during operation?
The mill is equipped with an efficient pulse dust collector and operates under negative pressure, so dust emission is minimal. The system meets national environmental standards. It’s a dramatic improvement over open-circuit hammer mills or ball mills. - What is the maintenance schedule for the grinding rollers?
Roller wear depends on the abrasiveness of your phosphate. Typically, inspect rollers and rings every 500–800 operating hours. Liming recommends keeping a spare set of rollers to minimize downtime. The external lubrication system allows oil changes without stopping the mill. - Is the MW mill suitable for small-scale feed producers?
Absolutely. The MW mill’s capacity range of 0.5–25 tph means it can serve a single feed line or a medium-scale plant. Its compact footprint and low energy consumption compared to ball mills make it accessible even for startups. However, you will need a secondary crusher if your raw material exceeds 20 mm. - How long does it take to change from one fineness to another?
The cage-type powder selector allows quick adjustment. With a trained operator, switching from 100 mesh to 200 mesh takes about 5–10 minutes, mostly for stabilization. There’s no need to change mechanical parts. - What power supply requirements does the MW mill have?
Power consumption varies with capacity and fineness, but typical installed power is around 55–160 kW for the main motor. A three-phase supply of 380V or 440V is standard. Check with your local distributor for specific breaker and transformer needs. - Can the mill handle wet phosphate rock?
It can handle material with moisture up to 10%%, but performance is best below 6%%. If your phosphate is often wet, consider adding a low-temperature dryer before the mill. The LUM mill integrates drying more effectively due to its hot air system.
