How to optimize phosphate processing with raymond mill for food additive in libya

Introduction: The Challenge of Phosphate Processing in Libya

Libya holds some of the largest phosphate rock reserves in the world, primarily located in the Murzuq and Sirte basins. For years, these reserves have been eyed for agricultural and industrial applications. However, a growing niche demand has emerged: producing high-purity, ultra-fine phosphate powder for the food additive market. Phosphate-based food additives, such as monosodium phosphate and tricalcium phosphate, require precise particle size distribution, strict control over heavy metal content, and consistent whiteness. Traditional ball mills or simple crushers often fail to meet the stringent requirements of the food industry—they either produce too broad a particle range, introduce iron contamination, or consume excessive energy. This article provides a practical, field-tested approach to optimizing phosphate processing for food additives in Libya using advanced Raymond mill and ultra-fine grinding technology. We will focus on equipment selection, process configuration, and common pitfalls to avoid, with specific product recommendations from LIMING Heavy Industry.

Understanding the Feedstock: Libyan Phosphate Rock

Libyan phosphate rock typically contains 25-30% P2O5, along with significant amounts of calcium carbonate, silica, and trace elements. For food grade additives, the industry standard often demands a fineness of d97 ≤ 45 µm (325 mesh) or even finer, around d97 ≤ 10 µm (1250 mesh), with extremely low iron and aluminum content. The raw ore is hard, abrasive, and often has a moisture content between 5-8% after initial washing and drying. This combination of hardness, abrasiveness, and moisture presents unique challenges for grinding equipment. A Raymond mill designed for general mineral grinding may suffer from rapid wear of grinding rollers and rings, bearing failures due to fine dust ingress, and inconsistent particle size if not properly configured. Therefore, the first step in optimization is choosing a mill that can handle the specific mechanical properties of Libyan phosphate while delivering food-grade purity.

Selecting the Right Grinding Mill: Beyond Traditional Raymond Mill

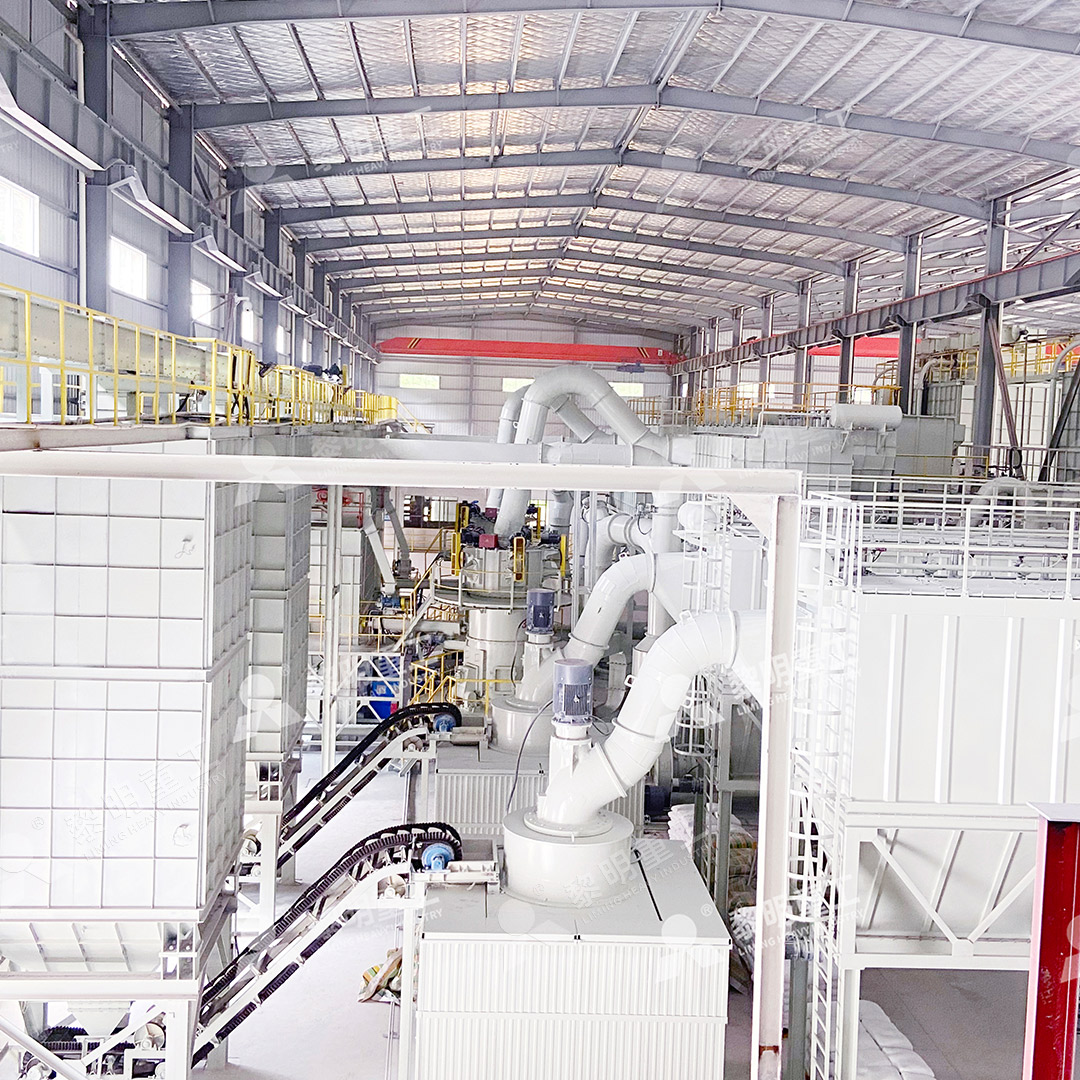

While the classic Raymond Mill (input size <25 mm, capacity 0.6-5 tph) serves as a reliable workhorse for coarse to medium-fine grinding (80-400 mesh), it often falls short for the ultra-fine requirements of food additives. For the Libyan phosphate context, we strongly recommend upgrading to the MW Ultrafine Grinding Mill. This mill is specifically engineered for ultra-fine powder production (325-2500 mesh, d97 ≤ 5 µm achievable), which directly aligns with the needs of the food additive industry. Why MW Ultrafine Grinding Mill for this application? Firstly, its grinding chamber contains no rolling bearings or screws, eliminating the risk of lubricant contamination or metallic debris mixing with the phosphate powder—a critical advantage for food safety. Secondly, the German-engineered cage-type powder selector ensures precise particle size separation, allowing operators to consistently produce material at d97 ≤ 10 µm with a single pass. Thirdly, the efficient pulse dust collector and muffler system make the entire operation environmentally compliant, which is increasingly important for obtaining export certifications. The MW mill can process 0.5-25 tph with an input size of 0-20 mm, perfectly matching the output of a standard jaw crusher or hammer crusher used in Libyan phosphate preprocessing plants.

Process Flow Optimization for Food-Grade Output

Optimization does not stop at choosing the right mill. The entire process line must be designed to prevent contamination and maximize efficiency. Here is a recommended configuration for a Libyan plant targeting food additive production:

• Stage 1: Primary Crushing & Drying. Use a jaw crusher to reduce run-of-mine ore to <50 mm. A rotary dryer or flash dryer should reduce moisture to below 2% before grinding. Wet phosphate causes material buildup in the mill and reduces classifier efficiency.
• Stage 2: Magnetic Separation. Install a magnetic separator after drying to remove iron filings introduced during mining and crushing. This step is non-negotiable for food additives.
• Stage 3: Grinding with MW Ultrafine Mill. Feed the dried, magnetically cleaned phosphate (<20 mm) into the MW mill. Adjust the classifier speed to achieve the target fineness—typically 800-1250 mesh for food-grade phosphate salts. The mill’s external lubrication system allows 24-hour continuous operation, minimizing downtime.
• Stage 4: Pneumatic Conveying & Packing. The product collected from the cyclone and pulse bag filter is conveyed in a closed system to automatic packing machines. Avoid bucket elevators for ultra-fine powders due to dust generation; dense phase conveying is preferred.

This closed-loop system, as described in the working principle of the MW mill, ensures that air is recycled and purified, meeting Libyan and international environmental standards. The digitalized numerical control processing guarantees that core parts like the grinding roller shell and ring maintain high precision, resulting in consistent product quality batch after batch.

Overcoming Specific Challenges in Libya

Operators in Libya face several specific hurdles. First, the ambient temperature can exceed 50°C in summer, affecting motor cooling and bearing life. The MW Ultrafine Grinding Mill’s external lubrication system is a major advantage here, as it allows lubrication without shutdown, and the main shaft bearings are protected from the hot dusty environment. Second, spare parts availability can be a bottleneck. LIMING addresses this by offering sufficient supply of original spare parts and technical services directly or through regional partners. We recommend purchasing a complete wear parts kit (grinding roller, ring, and shovel blade) with the initial mill order. Third, local technical expertise may be limited. The PLC control system on the MW mill simplifies operation—it provides real-time data on grinding pressure, classifier speed, and product fineness, enabling semi-skilled workers to manage the process effectively after basic training.

Quality Control and Compliance for Food Additives

To sell into the food additive market, the final phosphate powder must pass ISO 22000 or similar food safety standards. This requires strict control over particle size distribution and contamination levels. The MW mill’s adjustable fineness between 325-2500 meshes allows you to precisely match buyer specifications. More importantly, the absence of rolling bearings and screws in the grinding chamber means there is no source of grease contamination. The use of a pulse dust collector also prevents cross-contamination between different production runs. For additional assurance, consider integrating an inline particle size analyzer (e.g., laser diffraction) after the mill to continuously verify d97 values. This data can be fed back to the PLC to automatically adjust classifier speed, creating a truly self-optimizing system. The energy consumption of the MW system is only 30% of a jet mill, making it both an economical and a quality-focused choice.

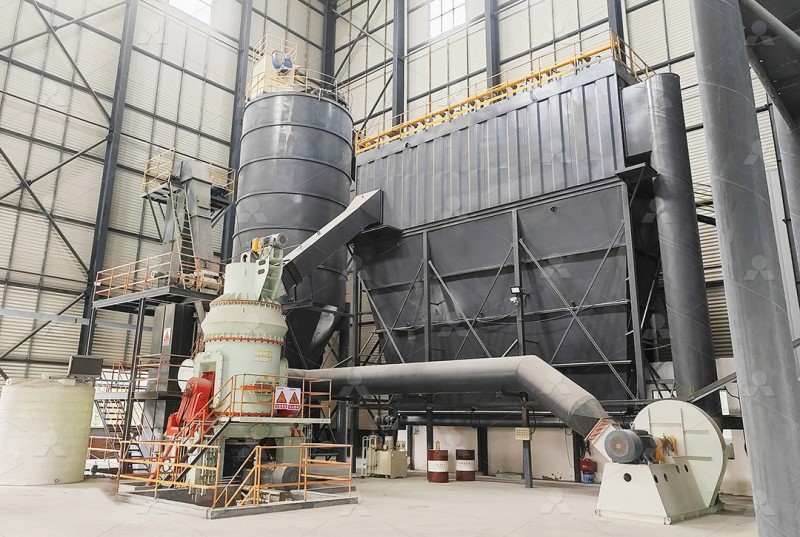

Alternative Solution: LUM Ultrafine Vertical Mill for Higher Capacity

If your projected output exceeds 18 tph, or if you need to process material with a slightly larger feed size (up to 10 mm), consider the LUM Ultrafine Vertical Grinding Mill (capacity 5-18 tph, input 0-10 mm). The LUM mill uses Taiwan grinding roller technology and German powder separating technology. Its unique reversible structure allows quick maintenance of grinding rollers, reducing downtime. The double position-limiting technology prevents destructive vibration, which is particularly useful when processing hard phosphate nodules. The LUM mill also features a multi-head powder separator that enables fast switching between different product fineness specifications—ideal if you are producing both coarse (325 mesh) and ultra-fine (1250 mesh) food-grade powder in the same plant. Both the MW and LUM mills are excellent choices; the decision hinges on your required throughput and specific feed characteristics.

Conclusion: A Path to Value-Added Production

Optimizing phosphate processing for food additives in Libya is not simply about buying a grinder—it is about engineering a complete system that prioritizes purity, efficiency, and maintainability. By moving from a traditional Raymond mill to an advanced solution like the MW Ultrafine Grinding Mill or the LUM Ultrafine Vertical Grinding Mill, Libyan producers can enter the high-value food additive market with confidence. The key takeaways are: control moisture, remove iron before grinding, select a mill with no internal bearings (to avoid contamination), and invest in a robust dust collection system. With the right equipment and process flow, Libyan phosphate can compete with global suppliers, providing ultra-fine, consistent, and safe powder for food manufacturing worldwide. LIMING Heavy Industry stands ready to support this transformation with proven technology, spare parts availability, and technical expertise.

Frequently Asked Questions (FAQ)

1. Can a standard Raymond mill produce food-grade phosphate powder? Standard Raymond mills can produce 100-400 mesh powder, which may be acceptable for some agricultural grades. However, for food additives requiring 800-2500 mesh with no metallic contamination, the MW Ultrafine Grinding Mill is strongly recommended due to its bearing-free chamber and precise classifier.
2. What is the typical power consumption for grinding phosphate to 1250 mesh? For an MW Ultrafine Mill processing phosphate, the system energy consumption is approximately 30% of a jet mill. The exact figure depends on feed moisture and hardness, but expect around 50-70 kWh per ton for 1250 mesh material.
3. How do you prevent iron contamination in the final product? We recommend installing a magnetic separator after the drying stage and before the mill. Additionally, the MW mill’s grinding chamber has no rolling bearings, and the grinding roller and ring are made of high-chrome wear-resistant alloy, minimizing iron pickup from the machine itself.
4. What after-sales support does LIMING offer for Libyan customers? LIMING provides technical services, including on-site commissioning, operator training, and a sufficient supply of original spare parts. We can also arrange remote troubleshooting via digital platforms, which is beneficial for remote mine sites.
5. Can the same mill be used for both phosphate and other food-grade minerals like calcium carbonate? Yes, the MW and LUM mills are highly versatile. However, thorough cleaning of the mill and feeding system is required between different materials to avoid cross-contamination, especially in food-grade applications.
6. What is the recommended feed moisture for the MW Ultrafine Mill? The optimal moisture content is below 2%. Higher moisture can cause material to stick to the grinding ring and reduce the classification efficiency. Use a flash dryer or rotary dryer before feeding.
7. How often should the grinding rollers and rings be replaced? For abrasive phosphate rock, the wear parts typically last 800-1500 operating hours, depending on the hardness and silica content. The MW mill’s split shovel blade design makes replacement easier. We recommend stocking one full set of wear parts for uninterrupted operation.
